General Purpose Buckets

HAWK’s excavator general purpose buckets bucket is best for dredging and material re-handling. These general purpose buckets is available in three different versions: heavy-duty, all-around, and clamshell buckets. Regardless of the versions, these equipment pieces feature a 360-degree sealed rotation. There are also units meant for environmental applications.

HAWK’s general purpose buckets excavator ranges from 5 to 50 tons. HAWK can also customize a general purpose buckets to fit any client-specified applications and bespoke demands. While these general digging buckets are typically used in excavation, they can also be utilized for other uses. Every application comes with unique requirements with designs that need to be optimized for maximum efficiency.

HAWK’s general purpose buckets for excavators is known for its efficiency, functionality, and quality. The company can develop, design, and even manufacture mechanical and hydraulic clamshells for cranes and excavators. Customers can customize the machine depending on its width, grip measure, capacity, and opening.

Excavator Range: 5 – 50 Tons
Capacity: 1.0 – 3.0m³
Recommended Application: commonly used in dredging, excavation, or material handling

In order to achieve a more perfect fit, HAWK can customize the size according to the needs of customers.

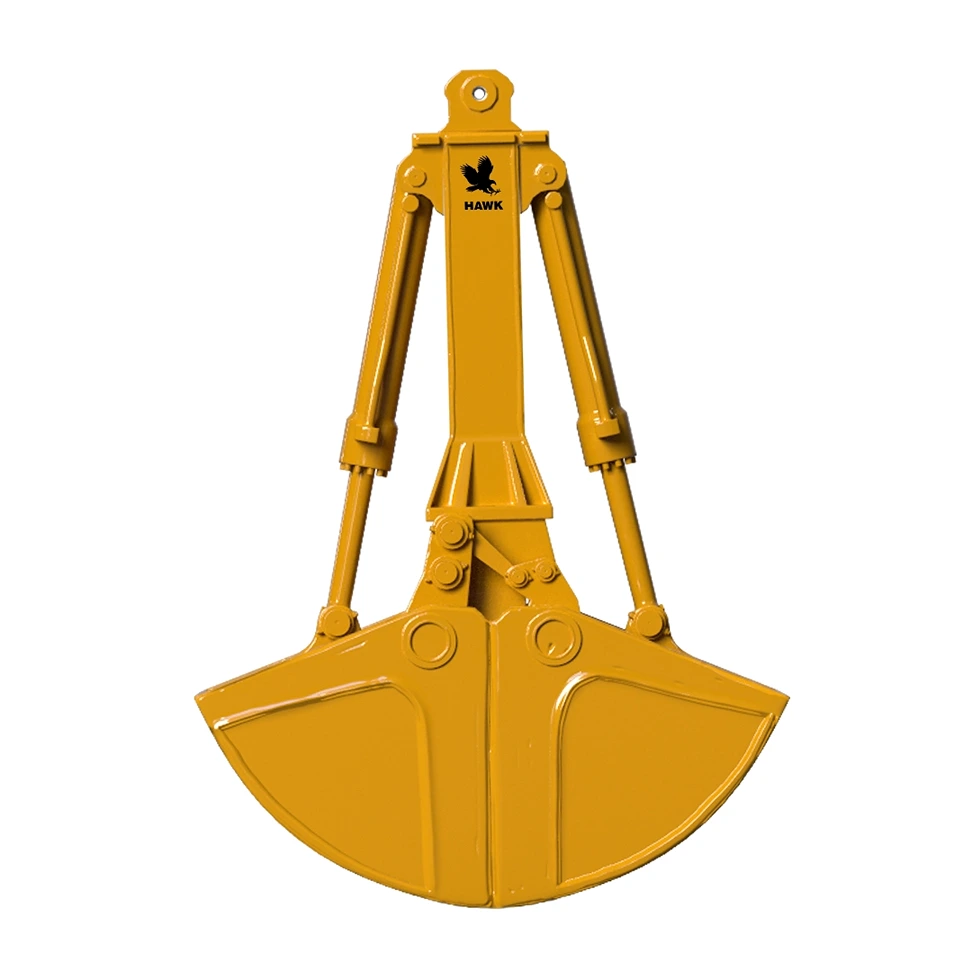

Clamshell Bucket Products

Rotating Clamshell Products

Model	Tonnage Range	Product	Capacity
RCB6	12T	Rotating Clamshell	0.6m³
RCB10	20T	Rotating Clamshell	1.0m³
RCB15	25T	Rotating Clamshell	1.5m³
RCB20	35T	Rotating Clamshell	2.0m³
RCB25	40T	Rotating Clamshell	2.5m³
RCB30	45T	Rotating Clamshell	3.0m³

Non-Rotating Clamshell Products

Model	Tonnage Range	Product	Capacity
NCB6	12T	Non-Rotating Clamshell	0.6m³
NCB10	20T	Non-Rotating Clamshell	1.0m³
NCB15	25T	Non-Rotating Clamshell	1.5m³
NCB20	35T	Non-Rotating Clamshell	2.0m³
NCB25	40T	Non-Rotating Clamshell	2.5m³
NCB30	45T	Non-Rotating Clamshell	3.0m³

Clamshell Bucket Products

CAT Clamshell Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
Rotating Clamshell Bucket for CAT 320	20T	20-23T	CAT 320	Rotating Clamshell	RCS320
Non-Rotating Clamshell for CAT 320	20T	20-23T	CAT 320	Non Rotating Clamshell	NRCS320
Rotating Clamshell Bucket for CAT 325	25T	25-35T	CAT 325	Rotating Clamshell	RCS325
Non-Rotating Clamshell for CAT 325	25T	25-35T	CAT 325	Non Rotating Clamshell	NRCS325
Rotating Clamshell Bucket for CAT 336	36T	35-40T	CAT 336	Rotating Clamshell	RCS336
Non-Rotating Clamshell for CAT 336	36T	35-40T	CAT 336	Non Rotating Clamshell	NRCS336
Rotating Clamshell Bucket for CAT 349	49T	45-50T	CAT 349	Rotating Clamshell	RCS349
Non-Rotating Clamshell for CAT 349	49T	45-50T	CAT 349	Non Rotating Clamshell	NRCS349

Komatsu Clamshell Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
Rotating Clamshell Bucket for Komatsu PC210	22T	20-23T	Komatsu PC210	Rotating Clamshell	RCS210
Non-Rotating Clamshell for Komatsu PC210	22T	20-23T	Komatsu PC210	Non Rotating Clamshell	NRCS210
Rotating Clamshell Bucket for Komatsu PC360	36T	35-40T	Komatsu PC360	Rotating Clamshell	RCS360
Non-Rotating Clamshell for Komatsu PC360	36T	35-40T	Komatsu PC360	Non Rotating Clamshell	NRCS360
Rotating Clamshell Bucket for Komatsu PC400	40T	35-40T	Komatsu PC400	Rotating Clamshell	RCS400
Non-Rotating Clamshell for Komatsu PC400	40T	35-40T	Komatsu PC400	Non Rotating Clamshell	NRCS400
Rotating Clamshell Bucket for Komatsu PC490	49T	45-50T	Komatsu PC490	Rotating Clamshell	RCS490
Non-Rotating Clamshell for Komatsu PC490	49T	45-50T	Komatsu PC490	Non Rotating Clamshell	NRCS490

HITACHI Clamshell Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
Rotating Clamshell Bucket for Hitachi EX120	12.5T	10-13T	Hitachi EX120	Rotating Clamshell	0.6m3
Non-Rotating Clamshell for Hitachi EX120	12.5T	10-13T	Hitachi EX120	Non Rotating Clamshell	0.6m3

John Deere Clamshell Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
Rotating Clamshell Bucket for John Deere 200G	20T	20-23T	John Deere 200G	Rotating Clamshell	1m3
Non-Rotating Clamshell for John Deere 200G	20T	20-23T	John Deere 200G	Non Rotating Clamshell	1m3
Rotating Clamshell Bucket for John Deere 210G	21T	20-23T	John Deere 210G	Rotating Clamshell	1m3
Non-Rotating Clamshell for John Deere 210G	21T	20-23T	John Deere 210G	Non Rotating Clamshell	1m3
Rotating Clamshell Bucket for John Deere 245G	24T	20-23T	John Deere 245G	Rotating Clamshell	1.5m3
Non-Rotating Clamshell for John Deere 245G	24T	20-23T	John Deere 245G	Non Rotating Clamshell	1.5m3
Rotating Clamshell Bucket for John Deere 350G	36T	35-40T	John Deere 350G	Rotating Clamshell	RCS336
Non-Rotating Clamshell for John Deere 350G	36T	35-40T	John Deere 350G	Non Rotating Clamshell	NRCS336
Rotating Clamshell Bucket for John Deere 470G	49T	45-50T	John Deere 470G	Rotating Clamshell	RCS490
Non-Rotating Clamshell for John Deere 470G	49T	45-50T	John Deere 470G	Non Rotating Clamshell	NRCS490

Volvo Clamshell Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
Rotating Clamshell Bucket for Volvo EC480	48T	45-50T	Volvo EC480	Rotating Clamshell	3m3
Non-Rotating Clamshell for Volvo EC480	48T	45-50T	Volvo EC480	Non Rotating Clamshell	3m3

CASE Clamshell Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
Rotating Clamshell Bucket for Case CX210	24T	24T	Case CX210	Rotating Clamshell	1m3
Non-Rotating Clamshell for Case CX210	24T	24T	Case CX210	Non Rotating Clamshell	1m3

General Digging Buckets

Item	Model No.	Material	Description	Unit Weight (kg)	QTY
GP Bucket	10-13 Ton excavator 60mm Pin diameter	Q355 Steel	30'' 762mm width	480	1
			36'' 915mm width	544	1
			42'' 1067mm width	608	1
GP Bucket	20-23 Ton excavator 80mm Pin diameter	Q355 Steel	36'' 915mm width	971	1
			42'' 1067mm width	1059	1
			48'' 1220mm width	1163	1
			54'' 1372mm width	1278	1
GP Bucket	25-35 Ton excavator 90mm Pin diameter	Q355 Steel + NM400 on main blade	36'' 915mm width	1146	1
			42'' 1067mm width	1269	1
			48'' 1220mm width	1359	1
			54'' 1372mm width	1494	1

General Digging Products

CAT General Purpose Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
GPB36 – General Purpose Bucket for CAT 320	20T	20-23T	CAT 320	Bucket	GPB2036
GPB42 – General Purpose Bucket for CAT 320	20T	20-23T	CAT 320	Bucket	GPB2042
GPB48 – General Purpose Bucket for CAT 320	20T	20-23T	CAT 320	Bucket	GPB2048
GPB54 – General Purpose Bucket for CAT 320	20T	20-23T	CAT 320	Bucket	GPB2054
GPB36 – General Purpose Bucket for CAT 325	25T	25-35T	CAT 325	Bucket	GPB2536
GPB42 – General Purpose Bucket for CAT 325	25T	25-35T	CAT 325	Bucket	GPB2542
GPB48 – General Purpose Bucket for CAT 325	25T	25-35T	CAT 325	Bucket	GPB2548
GPB54 – General Purpose Bucket for CAT 325	25T	25-35T	CAT 325	Bucket	GPB2554

Komatsu General Purpose Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
GPB2036 – General Purpose Bucket for Komatsu PC210	22T	20-23T	Komatsu PC210	Bucket	GPB2036
GPB2042 – General Purpose Bucket for Komatsu PC210	22T	20-23T	Komatsu PC210	Bucket	GPB2042
GPB2048 – General Purpose Bucket for Komatsu PC210	22T	20-23T	Komatsu PC210	Bucket	GPB2048
GPB2054 – General Purpose Bucket for Komatsu PC210	22T	20-23T	Komatsu PC210	Bucket	GPB2054

HITACHI EX120 General Purpose Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
GPB1030 – General Purpose Bucket for Hitachi EX120	12.5T	10-13T	Hitachi EX120	Bucket	GPB1030
GPB1036 – General Purpose Bucket for Hitachi EX120	12.5T	10-13T	Hitachi EX120	Bucket	GPB1036
GPB1042 – General Purpose Bucket for Hitachi EX120	12.5T	10-13T	Hitachi EX120	Bucket	GPB1042

John Deere General Purpose Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
GPB2036 – General Purpose Bucket for John Deere 200G	20T	20-23T	John Deere 200G	Bucket	GPB2036
GPB2042 – General Purpose Bucket for John Deere 200G	20T	20-23T	John Deere 200G	Bucket	GPB2042
GPB2048 – General Purpose Bucket for John Deere 200G	20T	20-23T	John Deere 200G	Bucket	GPB2048
GPB2054 – General Purpose Bucket for John Deere 200G	20T	20-23T	John Deere 200G	Bucket	GPB2054
GPB2036 – General Purpose Bucket for John Deere 210G	21T	20-23T	John Deere 210G	Bucket	GPB2036
GPB2042 – General Purpose Bucket for John Deere 210G	21T	20-23T	John Deere 210G	Bucket	GPB2042
GPB2048 – General Purpose Bucket for John Deere 210G	21T	20-23T	John Deere 210G	Bucket	GPB2048
GPB2054 – General Purpose Bucket for John Deere 210G	21T	20-23T	John Deere 210G	Bucket	GPB2054
GPB2036 – General Purpose Bucket for John Deere 245G	24T	20-23T	John Deere 245G	Bucket	GPB2036
GPB2042 – General Purpose Bucket for John Deere 245G	24T	20-23T	John Deere 245G	Bucket	GPB2042
GPB2048 – General Purpose Bucket for John Deere 245G	24T	20-23T	John Deere 245G	Bucket	GPB2048
GPB2054 – General Purpose Bucket for John Deere 245G	24T	20-23T	John Deere 245G	Bucket	GPB2054

CASE CX210 General Purpose Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
GPBB36 – General Purpose Bucket for Case CX210	24T	24T	Case CX210	Bucket	GPBB36
GPBB42 – General Purpose Bucket for Case CX210	24T	24T	Case CX210	Bucket	GPBB42
GPBB48 – General Purpose Bucket for Case CX210	24T	24T	Case CX210	Bucket	GPBB48
GPBB54 – General Purpose Bucket for Case CX210	24T	24T	Case CX210	Bucket	GPBB54

Severe Duty Buckets

Item	Model No.	Material	Description	Unit Weight (kg)	QTY
Rock Bucket	35-40 Ton excavator 100mm Pin diameter	Q355 Steel + NM400 on main blade & side cutting blade & bottom wear strip	42'' 1067mm width	1559	1
			48'' 1220mm width	1701	1
			54'' 1372mm width	1809	1
			60'' 1524mm width	1955	1
			66'' 1676mm width	2047	1
			72'' 1830mm width	2242	1
Rock Bucket	45-50 Ton excavator 110mm Pin diameter	Q355 Steel + NM400 on main blade & side cutting blade & bottom wear strip	48'' 1220mm width	2256	1
			54'' 1372mm width	2464	1
			60'' 1524mm width	2576	1
			66'' 1676mm width	2849	1
			72'' 1830mm width	2920	1

Severe Duty Buckets Products

CAT Rock Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
RB3542 – Rock Bucket for CAT 336	36T	35-40T	CAT 336	Rock Bucket	RB3542
RB3548 – Rock Bucket for CAT 336	36T	35-40T	CAT 336	Rock Bucket	RB3548
RB3554 – Rock Bucket for CAT 336	36T	35-40T	CAT 336	Rock Bucket	RB3554
RB3560 – Rock Bucket for CAT 336	36T	35-40T	CAT 336	Rock Bucket	RB3560
RB3566 – Rock Bucket for CAT 336	36T	35-40T	CAT 336	Rock Bucket	RB3566
RB3572 – Rock Bucket for CAT 336	36T	35-40T	CAT 336	Rock Bucket	RB3572
RB4548 – Rock Bucket for CAT 349	49T	45-50T	CAT 349	Rock Bucket	RB4548
RB4554 – Rock Bucket for CAT 349	49T	45-50T	CAT 349	Rock Bucket	RB4554
RB4560 – Rock Bucket for CAT 349	49T	45-50T	CAT 349	Rock Bucket	RB4560
RB4566 – Rock Bucket for CAT 349	49T	45-50T	CAT 349	Rock Bucket	RB4566
RB4572 – Rock Bucket for CAT 349	49T	45-50T	CAT 349	Rock Bucket	RB4572

Komatsu Rock Digging Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
RB3542 – Rock Digging Bucket for Komatsu PC360	36T	35-40T	Komatsu PC360	Bucket	RB3542
RB3548 – Rock Digging Bucket for Komatsu PC360	36T	35-40T	Komatsu PC360	Bucket	RB3548
RB3554 – Rock Digging Bucket for Komatsu PC360	36T	35-40T	Komatsu PC360	Bucket	RB3554
RB3560 – Rock Digging Bucket for Komatsu PC360	36T	35-40T	Komatsu PC360	Bucket	RB3560
RB3566 – Rock Digging Bucket for Komatsu PC360	36T	35-40T	Komatsu PC360	Bucket	RB3566
RB3572 – Rock Digging Bucket for Komatsu PC360	36T	35-40T	Komatsu PC360	Bucket	RB3572
RB3542 – Rock Digging Bucket for Komatsu PC400	40T	35-40T	Komatsu PC400	Bucket	RB3542
RB3548 – Rock Digging Bucket for Komatsu PC400	40T	35-40T	Komatsu PC400	Bucket	RB3548
RB3554 – Rock Digging Bucket for Komatsu PC400	40T	35-40T	Komatsu PC400	Bucket	RB3554
RB3560 – Rock Digging Bucket for Komatsu PC400	40T	35-40T	Komatsu PC400	Bucket	RB3560
RB3566 – Rock Digging Bucket for Komatsu PC400	40T	35-40T	Komatsu PC400	Bucket	RB3566
RB3572 – Rock Digging Bucket for Komatsu PC400	40T	35-40T	Komatsu PC400	Bucket	RB3572

John Deere Rock Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
John Deere 350G Rock Bucket RB3542	36T	35-40T	John Deere 350G	Rock Bucket	RB3542
John Deere 350G Rock Bucket RB3548	36T	35-40T	John Deere 350G	Rock Bucket	RB3548
John Deere 350G Rock Bucket RB3554	36T	35-40T	John Deere 350G	Rock Bucket	RB3554
John Deere 350G Rock Bucket RB3560	36T	35-40T	John Deere 350G	Rock Bucket	RB3560
John Deere 350G Rock Bucket RB3566	36T	35-40T	John Deere 350G	Rock Bucket	RB3566
John Deere 350G Rock Bucket RB3572	36T	35-40T	John Deere 350G	Rock Bucket	RB3572
John Deere 470G Rock Digging Bucket RB5048	49T	45-50T	John Deere 470G	Bucket	RB5048
John Deere 470G Rock Digging Bucket RB5054	49T	45-50T	John Deere 470G	Bucket	RB5054
John Deere 470G Rock Digging Bucket RB5060	49T	45-50T	John Deere 470G	Bucket	RB5060
John Deere 470G Rock Digging Bucket RB5066	49T	45-50T	John Deere 470G	Bucket	RB5066
John Deere 470G Rock Digging Bucket RB5072	49T	45-50T	John Deere 470G	Bucket	RB5072

VOLVO Rock Digging Bucket Products	Tonnage	HAWK Range	Excavator	Attachment	Model
RB4548 – Rock Digging Bucket for Volvo EC480	48T	45-50T	Volvo EC480	Bucket	RB4548
RB4554 – Rock Digging Bucket for Volvo EC480	48T	45-50T	Volvo EC480	Bucket	RB4554
RB4560 – Rock Digging Bucket for Volvo EC480	48T	45-50T	Volvo EC480	Bucket	RB4560
RB4566 – Rock Digging Bucket for Volvo EC480	48T	45-50T	Volvo EC480	Bucket	RB4566
RB4572 – Rock Digging Bucket for Volvo EC480	48T	45-50T	Volvo EC480	Bucket	RB4572
